High quality hydraulic pump station, powerful.
C shape steel mast made by special rolled craft, strong and safe.
Simple design, nimble, easy to operate.
High quality oil cylinder, lift fast, 360° electrical turning.
Scale function: zero collection, gross/wet weighing, total weight tolerance:±100g.

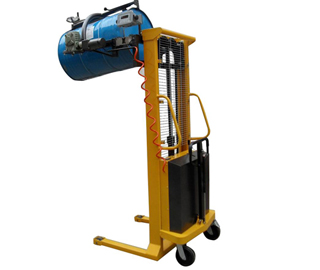

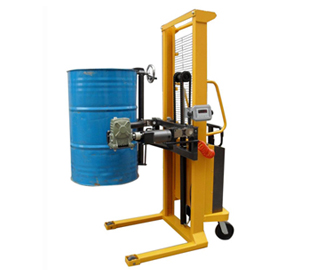

Use for moving, loading and tilting liquid such as dyes, paint, adhesive, oil in chemical industry, food workshop.
Specifications of YL Drum Truck With Scale:
| Model | YL500A | YL500A-1 | YL500B | |
|---|---|---|---|---|
| Rated capacity | kg | 500 | 500 | 500 |
| Net weight | kg | 243 | 243 | 240 |
| Front wheel size(Nylon) | mm | Φ80×60 | Φ80×60 | Φ80×60 |
| Rear wheel size(Nylon) | mm | Φ180×50 | Φ180×50 | Φ180×50 |
| Front outriggers inner width | mm | 620 | 620 | 620 |
| Front outriggers outer width | mm | 820 | 820 | 820 |
| Total size(L×W×H) | mm | 1500×980×2060 | 1500×980×2060 | 1500×980×2060 |
| Power | kw/v | 1.5/12 | 1.5/12 | 1.5/12 |
| Battery | V/AH | 12/120 | 12/120 | 12/120 |
| Battery charger | V | 12 | 12 | 12 |
| Monitor charger | V | 6 | 6 | 6 |
| Min turn radius | mm | 1750 | 1750 | 1750 |
| Max lift height | mm | 1450 | 1450 | 1450 |
| Lift speed | s/mm | 120 | 120 | 120 |
| Turning speed | min/3600 | 1 | 1 | 1:60 |
